Kitchen Storage

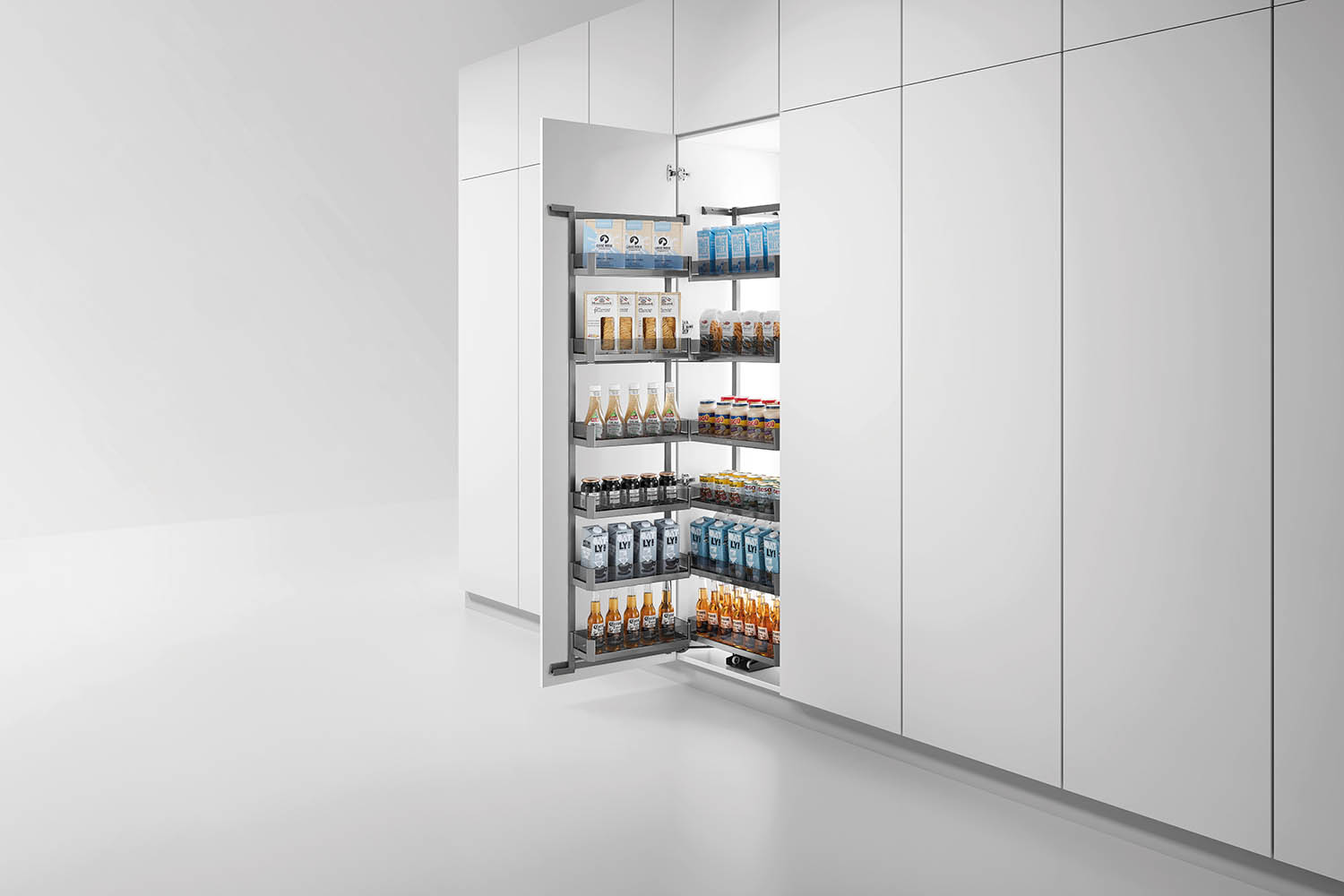

Amethyst Series Pantry Roll-out
German technology, super load-bearing,widen roller structure guide rail, simple and brand new linkage structure, pull out the inner baskets while opening the door.
Load-bearing point of cabinet door focus on bottom of cabinet, protect the door from deformation.
It is recommended to store frequently-used kitchen utensils, snacks, dried fruit or condiments.
It is suitable to be used with embedded refrigerator in high cabinet combination, not only can convenient to fetch items, but also can reduce the abrupt feeling of single use.
The metal frame is made of aerospace-grade aluminum alloy, the base plate is crafted from premium 304 stainless steel, and features gray crystal tempered glass enclosures.
The base plate adopts a dual-layer structure of 304 stainless steel and PVC board, reinforced with load-bearing beam craftsmanship, ensuring the base plate remains rigid and resistant to sagging.
Three-section rail design, self-locking structure, two-way buffering; Full-covered protective structure prevents dust and sawdust; Damping system, soft and silent operation; The thickness of the guide rail plate is 10mm, with galvanized steel plate ensuring strength.Dynamic load is 30kg and operating smoothly under the extreme load; Pass SGS 80000 cycle movement test!
The surface of the base plate is treated with European eco-friendly anti-fingerprint technology, ensuring fingerprints wipe away effortlessly while maintaining its lustrous appearance. Additionally, it offers anti-slip properties for enhanced safety and durability.
The innovative snap-fit mechanism enables the drawer basket and slide rails to be securely connected without screws, achieving tool-free, rapid installation and removal – a design that streamlines assembly while ensuring robust stability.
Looking for more information?
ESHOP
CATALOG
VIDEO

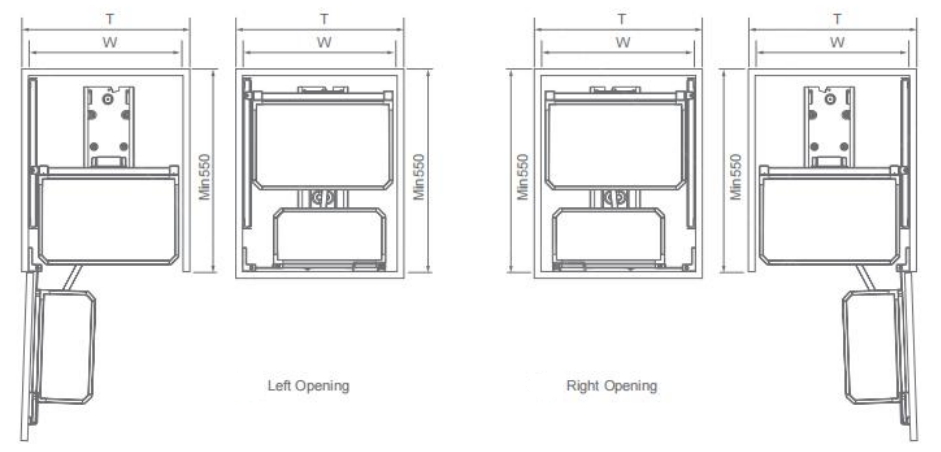

| Frame item No. | Basket item No. | Cabinet width | Width x Depth x Height | Description |
|---|---|---|---|---|
| 2020001B | 2020071A | 450mm | 405x500x≥1180mm | 4 Tiers |
| 2020002B | 2020072A | 450mm | 405x500x≥1430mm | 5 Tiers |
| 2020003B | 2020073A | 450mm | 405x500x≥1780mm | 6 Tiers |
| 2020004B | 2020074A | 600mm | 555x500x≥1180mm | 4 Tiers |
| 2020005B | 2020075A | 600mm | 555x500x≥1430mm | 5 Tiers |
| 2020006B | 2020076A | 600mm | 555x500x≥1780mm | 6 Tiers |
DESIGN INSPIRATION "WHEN IT DOES NOT EXIST, DESIGN IT."
This quote is from the founder of Rolls-Royce and resonates with NUOMI’s dedication to product design and spirit of innovation.
DESIGN LANGUAGE "ELEGANCE, DYNAMISM, INNOVATION"
Breaking away from traditional basket designs, persistently exploring and innovating nested functionality, blending dynamic lines with a modern aesthetic. Born from simplicity, imbued with a sense of luxurious living, embodying elegance and luxury.
