Kitchen Storage

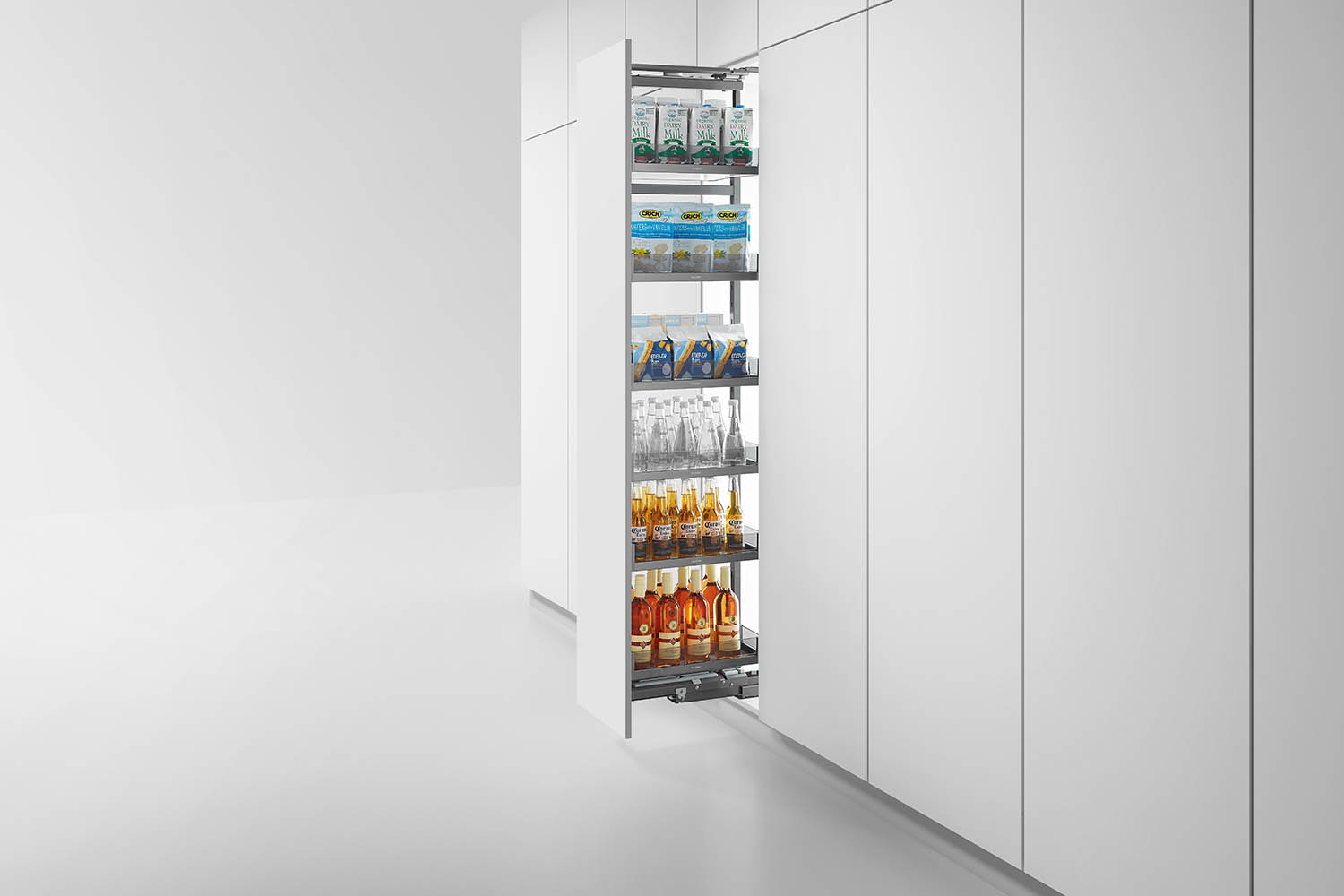

Amethyst Series Tall Unit

Heavy damping rail technology is also the key to achieve running function of the tall cabinet width, especially under heavy loading weight, reflecting the perfect balance of supporting capacity andstorage function. Simple design, the perfect combination of beauty and storage function, make your dream kitchen. German technology super load-bearing damping guide rail, synchronization damping design of upper and bottom guide rails, running smooth and stable. The heavy damping guide rail technology is also the key to the realization of high cabinet pull-push function. Especially on the premise of a considerable weight, the heavy damping technology provides the user with excellent function guarantee during the holistic slippery pull-out, which embodies the perfect balance between the supporting capacity and the storage function. Mounting height of basket can be adjusted flexibly, extraordinary capacity. Unique 180ยฐrotatable structure, convenient to store items. It is recommended to store frequently-used kitchen utensils, snacks, dried fruit or condiments. It is suitable to be used with embedded refrigerator in high cabinet combination, not only can convenient to fetch items, but also can reduce the abrupt feeling of single use.
Amethyst Series Tall Unit
Aviation-grade aluminium alloy

The metal frame is made of aerospace-grade aluminum alloy, the base plate is crafted from premium 304 stainless steel, and features gray crystal tempered glass enclosures.

The base plate features a dual protective structure.

The base plate adopts a dual-layer structure ofย 304 stainless steelย andย PVC board, reinforced withย load-bearing beam craftsmanship, ensuring the base plate remains rigid and resistant to sagging.

German hurmar soft-close synchronous guide rail

Three-section rail design, self-locking structure, two-way buffering; Full-covered protective structure prevents dust and sawdust; Damping system, soft and silent operation; The thickness of the guide rail plate is 10mm, with galvanized steel plate ensuring strength.Dynamic load is 30kg and operating smoothly under the extreme load; Pass SGS 80000 cycle movement test!

Bottom with anti-fingerprint coating

The surface of the base plate is treated withย European eco-friendly anti-fingerprint technology, ensuring fingerprints wipe away effortlessly while maintaining its lustrous appearance. Additionally, it offersย anti-slip propertiesย for enhanced safety and durability.

Tool-free quick-install system

Theย innovative snap-fit mechanismย enables the drawer basket and slide rails to be securely connectedย without screws, achievingย tool-free, rapid installation and removalย โ€“ a design that streamlines assembly while ensuring robust stability.

Looking for more information?

ESHOP

CATALOG

VIDEO

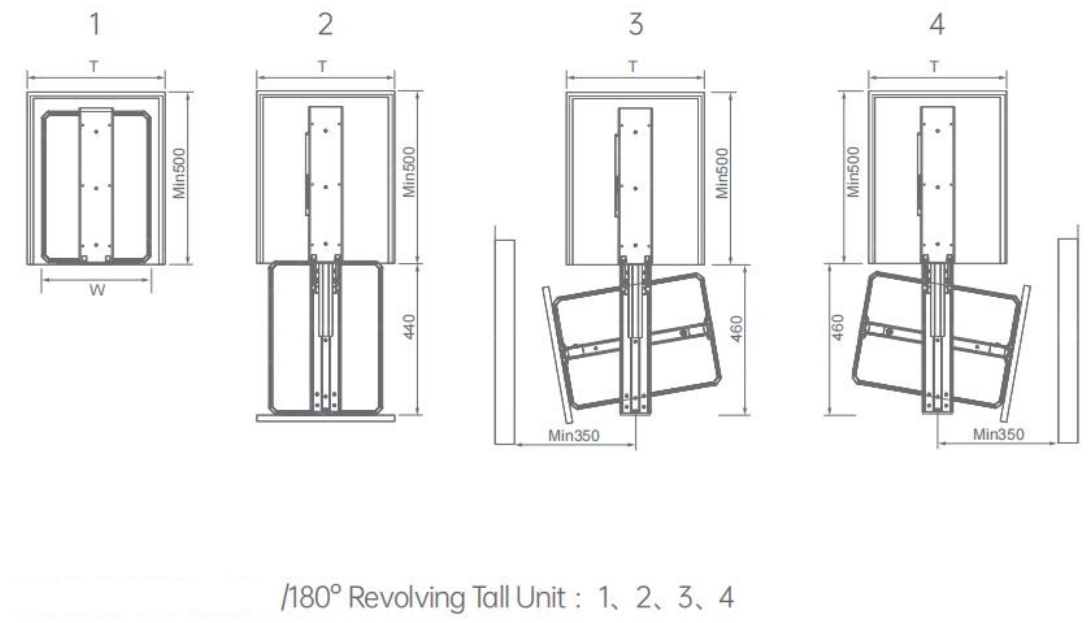

Frame item No.Basket item No.Rail item No.Cabinet widthWidth x Depth x HeightDescription
2010001B2010071A2010007B300mm240x480x(1180-1480)mm4 Tiers
2010002B2010072A2010007B300mm240x480x(1430-1730)mm5 Tiers
2010003B2010073A2010007B300mm240x480x(1780-2080)mm6 Tiers
2010001B2010074A2010008B400mm340x480x(1180-1480)mm4 Tiers
2010002B2010075A2010008B400mm340x480x(1430-1730)mm5 Tiers
2010003B2010076A2010008B400mm340x480x(1780-2080)mm6 Tiers

DESIGN INSPIRATION "WHEN IT DOES NOT EXIST, DESIGN IT."

This quote is from the founder of Rolls-Royce and resonates with NUOMI’s dedication to product design and spirit of innovation.

DESIGN LANGUAGE "ELEGANCE, DYNAMISM, INNOVATION"

Breaking away from traditional basket designs, persistently exploring and innovating nested functionality, blending dynamic lines with a modern aesthetic. Born from simplicity, imbued with a sense of luxurious living, embodying elegance and luxury.
